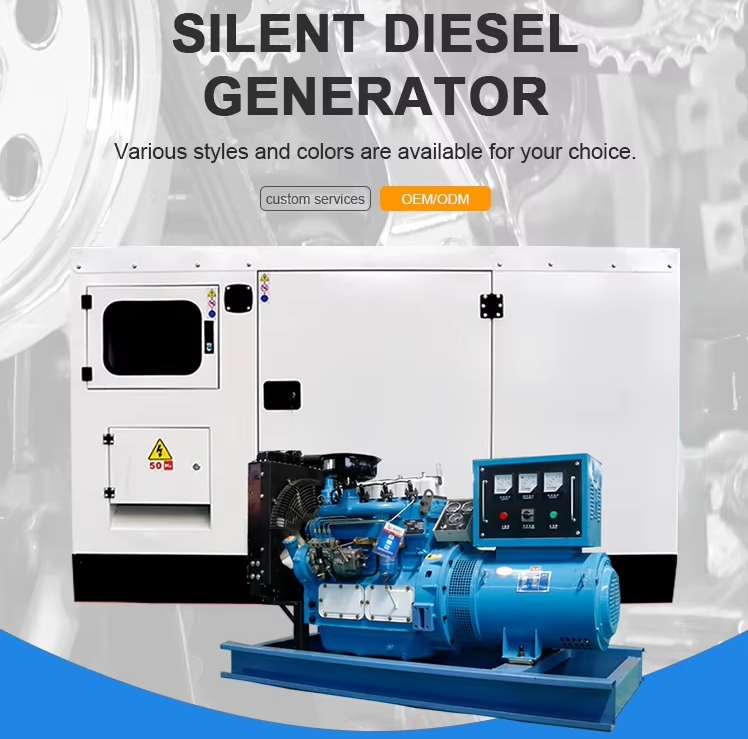

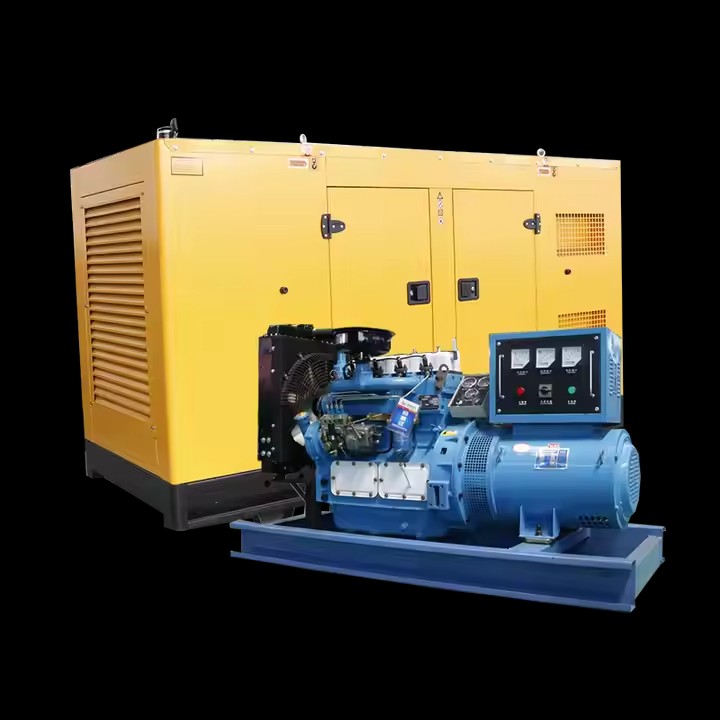

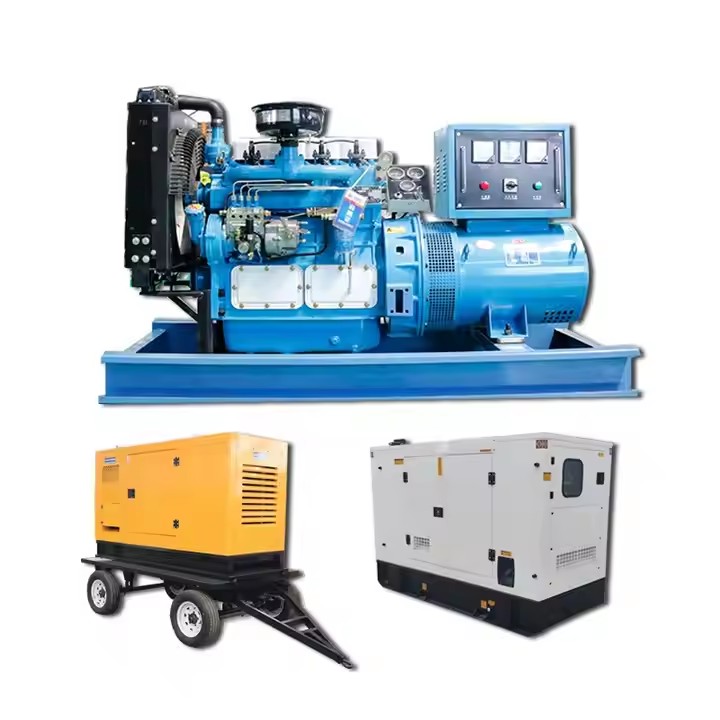

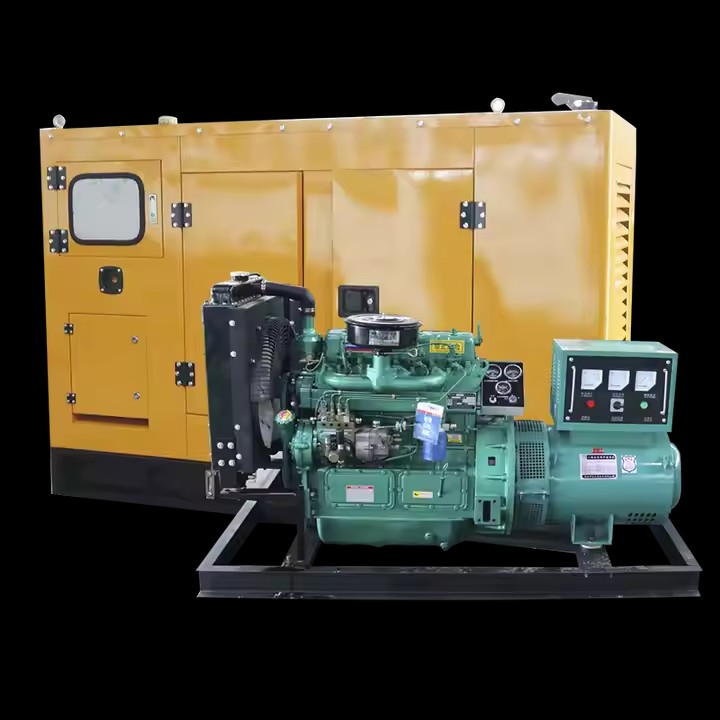

37.5KVA 30kw Cheapest Silent Type diesel Power Generator Generators
37.5KVA 30kw Cheapest Silent Type diesel Power Generator Generators

37.5KVA 30kw Cheapest Silent Type diesel Power Generator Generators

Categories: Equipment Series
Contact Now
Product Description


Technical specification parameters of

30KW diesel generator set

Unit model

YAG-30GF

Rated power

30KW

Rated output voltage

230V/400V(

Rated power factor

0.8

Rated current

54A

Insulation grade

H

Rated speed

1500/1800rpm

Protection grade

IP22

Rated frequency

50/60HZ

Overall dimension (mm)

1800*700*1200

Voltage Control Methods

AVR

Overall weight

500KG

Technical specification parameters of diesel engine

Brand

YAG

Model

K4100D

Cylinders

4

Speed

1500/1800rpm

Bore * stroke（mm)

100*115

Power

30.1KW

Displacement

3.6

Fuel consumption rate

228g/kwh

Type

Straight line, four stroke

Lubrication mode

Pressure and splash type

Intake mode

Turbo charged, air to air cooled

Start-up mode

24V DC electric start

Speed regulation

Mechanical speed regulation

Cooling mode

Closed water cooling

Technical specification parameters of alternator

Rated power

30KW

Type

Brushless

Insulation grade

H

Protection grade

IP21/22/23

Phase

3-Phase,4-wire

Voltage Control Methods

AVR



Hot Products

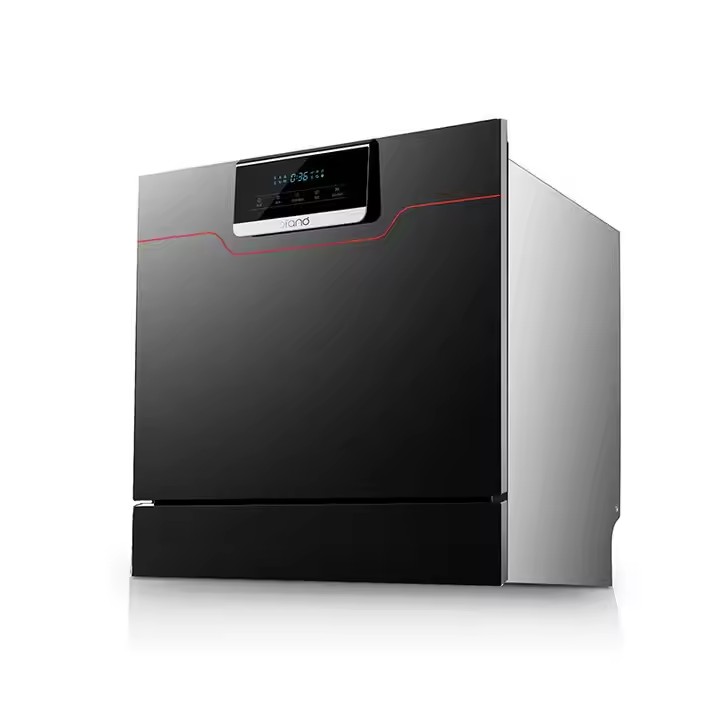

Dishwasher Magnet Covers Drawer Dishwasher Appliance Parts Dish Washer Built-in Dishwasher Form Kitchen
Dishwasher Magnet Covers Drawer Dishwasher Appliance Parts Dish Washer Built-in Dishwasher Form Kitchen

Contact Now

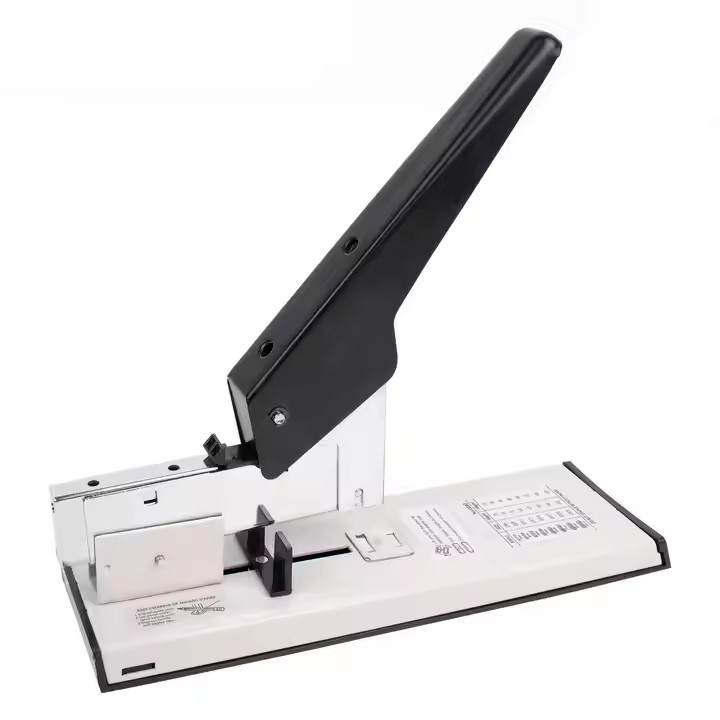

High Capacity Jumbo Book Stapler Machine 240 Sheets Manual Heavy Duty Stapler Machine for Office
