Customized Motherboard A520 DDR4 Socket AM4 3000/4000/5000 ATX Desktop Gaming Mainboard

Categories:

Industrial Electronics

Product Description

Processor	AMD®socket AM4 supportAMD® Ryzen 3000,4000,5000 processors
Chipset	A520Chipset
Memory Support	2*DDR4 2133/2400/2666/2933/3200 DIMM MAX 64GB
LAN	Support 1* RTL8111H 10/100/1000Mbps Ethernet optinal Realtek RTL8106E 10/100Mbps Ethernet support Wake On LAN
Audio	Support Realtek ALC897 high fidelity audio controller Optional Realtek ALC662 high fidelity audio controller
SATA	4*SATA3.0 port 6Gb/s
M.2	1*M.2_SSD( M key NVME 2242/2260/2280)
USB	6* USB 3.0 ports 4* USB 2.0 ports

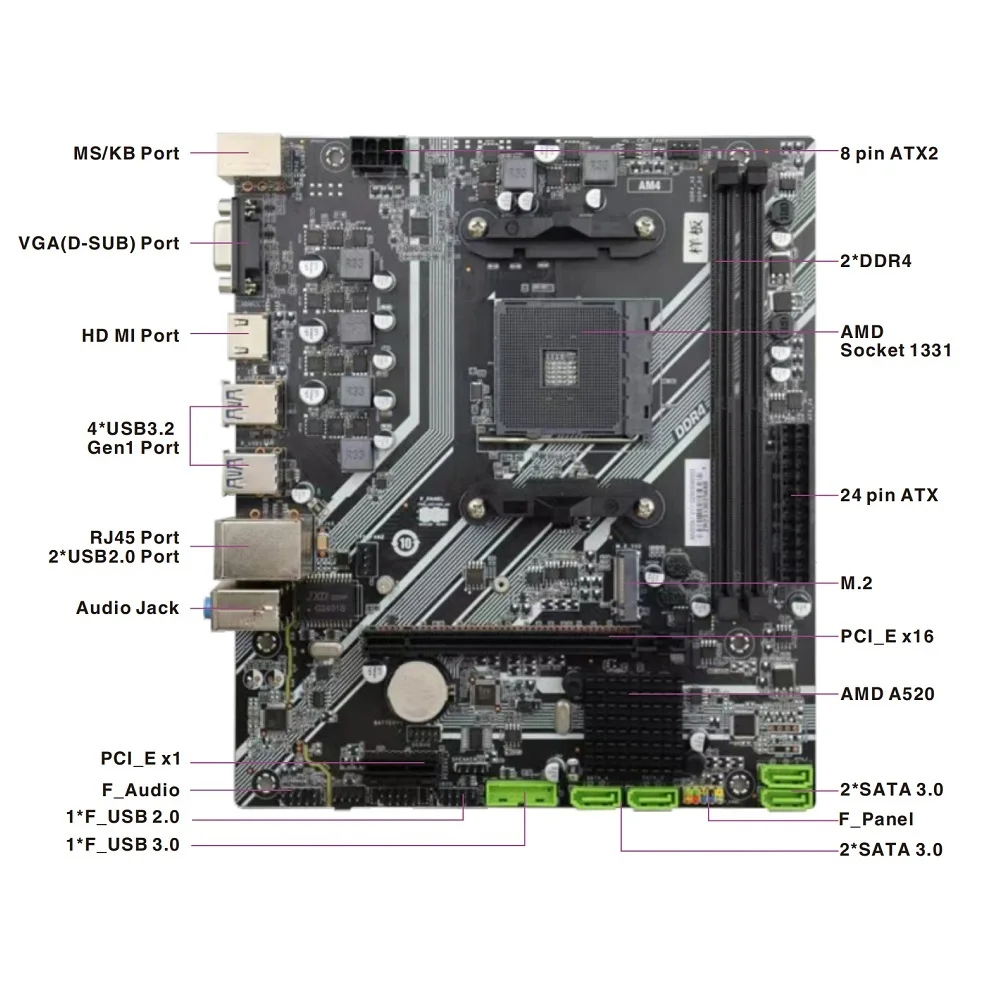

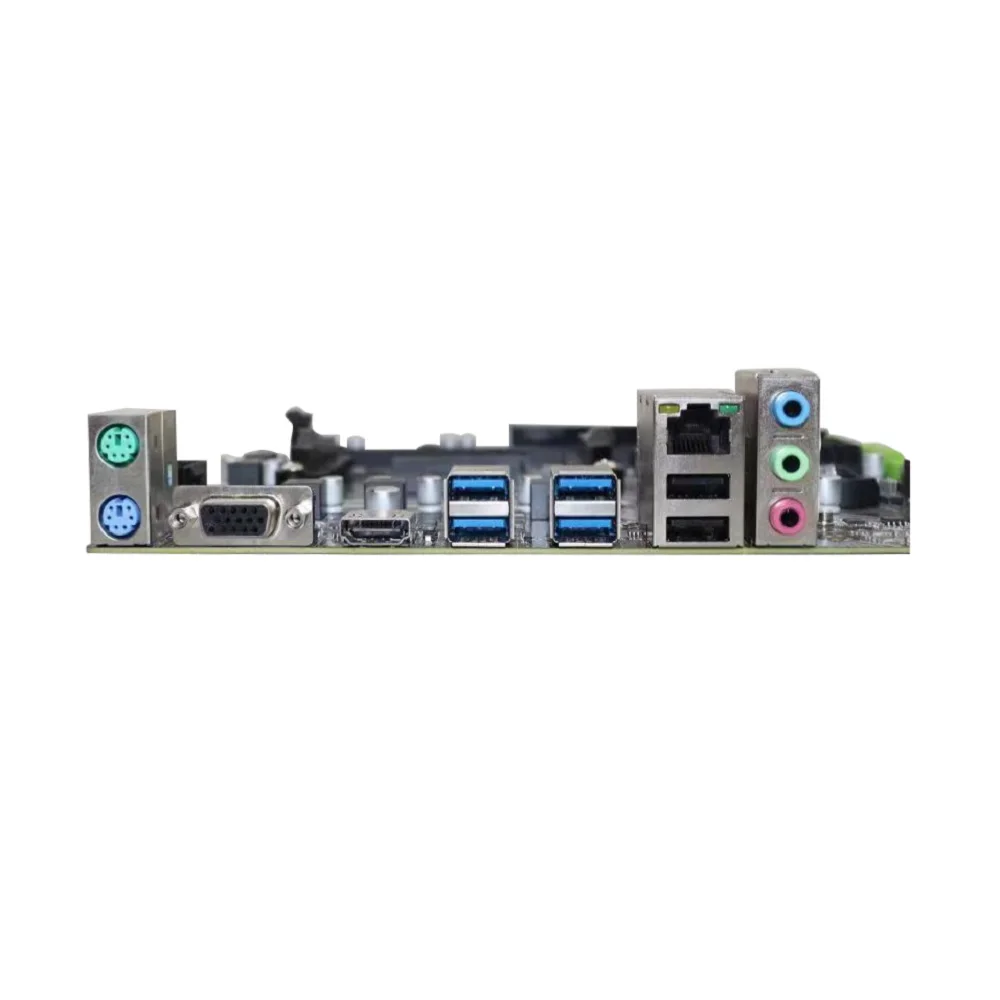

Back panel	1KB_MS port(colay 2USB2.0) 1HDMI port 1VGA(D-SUB) port 2USB2.0 port 4USB3.2 Gen 1 port 1RJ45 port 1AUDIO_JACK(LINE_IN/LINE_OUT/MIC_IN)
on board	1F_AUDIO connector 2SYS_FAN connector 1COM connector 1F_USB2.0 connector ∟Support additional 2USB2.0 port 1F_USB3.0 connector ∟Support additional 2USB3.0 port 1CLR_CMOS connector 1F_PANEL connector 1Speaker connector 1CPU_FAN connector 1ATX_24P power port 1*ATX_8P power port
Slots	1PCIe3.0 X16 slot 1PCIe3.0 x1 slot
Form factor	Micro-ATX (21.7*19cm)
Mounting	6 mounting holes
