Gaming Motherboard B450 DDR4 Socket AM4 LGA1331 B450 Chipset ATX Desktop Computer Mainboard

Categories:

3C electronic product

Product Description

Processor	AMD® socket AM4 LGA1331 supportAMD® Ryzen 1000/2000/3000/4000/5000 processors
Chipset	B450 Chipset
Memory Support	2*DDR4 2133/2400/2666/2933/3200 DIMM MAX 64GB
LAN	Support 1* RTL8111H 10/100/1000Mbps Ethernet optinal Realtek RTL8106E 10/100Mbps Ethernet support Wake On LAN
Audio	Support Realtek ALC897 high fidelity audio controller Optional Realtek ALC662 high fidelity audio controller
Storage	4SATA3.0 port 6Gb/s 1M.2_SSD( M key NVME 2242/2260/2280)
USB	6USB 3.0 ports 4USB 2.0 ports

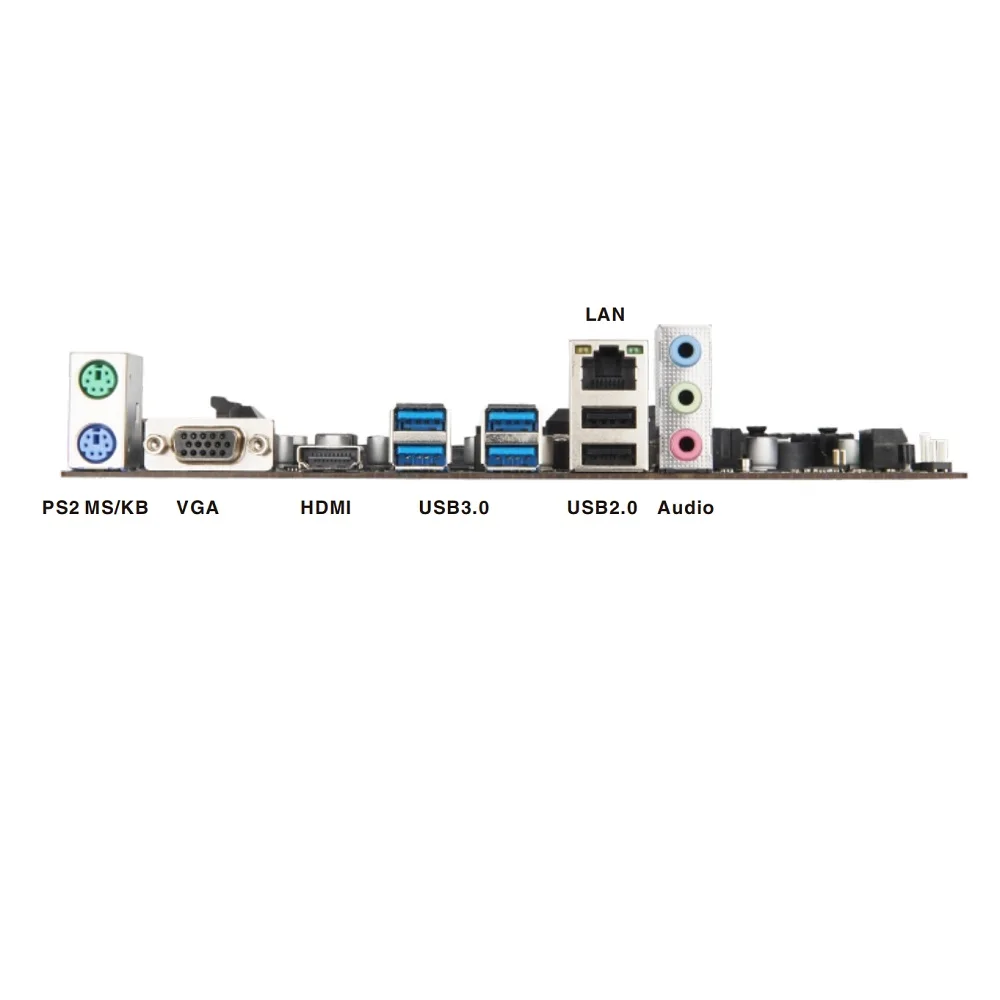

Back panel	1HDMI port 1RJ45 port 1VGA(D-SUB) port 1KB_MS port(colay 2USB2.0) 2USB2.0 port 4USB3.2 Gen 1 port 1AUDIO_JACK(LINE_IN/LINE_OUT/MIC_IN)

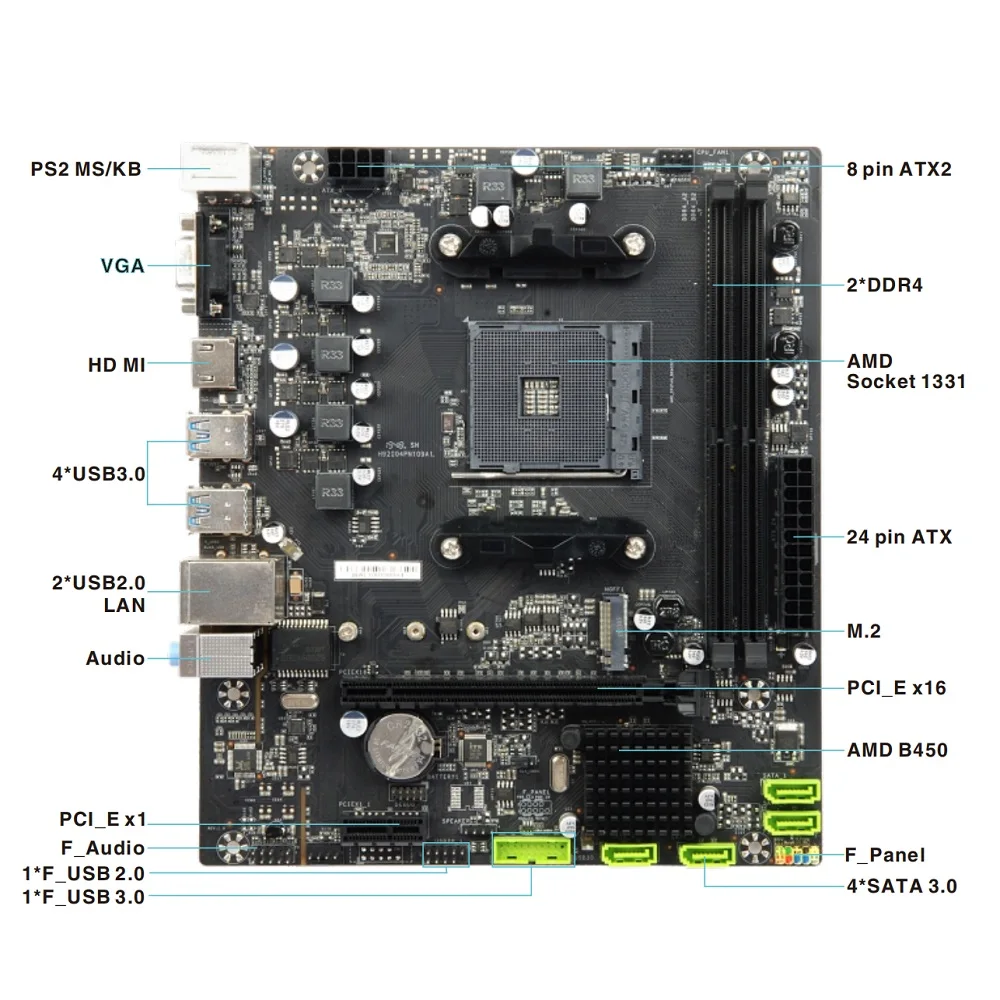

on board	1CLR_CMOS connector 1F_PANEL connector 1Speaker connector 1SYS_FAN connector 1CPU_FAN connector 1ATX_24P power port 1ATX_8P power port 1F_AUDIO connector 1DEBUG connector 1COM connector 1F_USB2.0 connector Support additional 2USB2.0 port 1F_USB3.0 connector Support additional 2USB3.0 port
Slots	1PCIe3.0 X16 slot 1PCIe3.0 x1 slo
Form factor	Micro-ATX Form Factor (21.5x18.5cm)
Mounting	6 mounting holes
