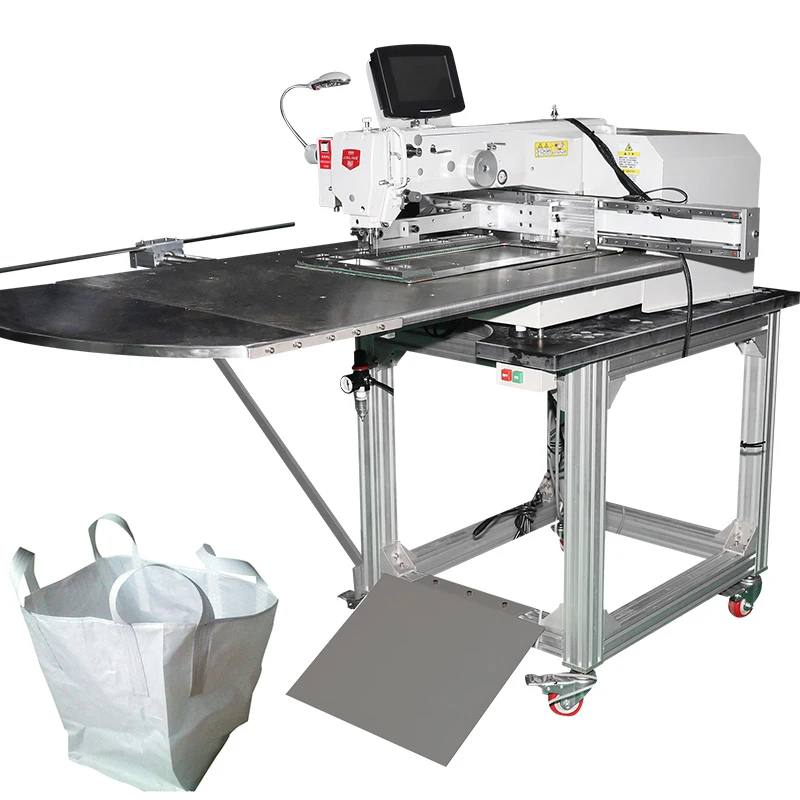

1. | Commodity | FIBC ton bag sewing machine |
2. | Sewing Area | X(Lateral) Direction Y(Longitudinal) Direction
600(mm) x 400(mm) |
3. | Max. Sewing Speed | 2700rpm |
4. | Stitch Length | 0.1～12.7mm |
5. | Feed Motion of Frame | Intermittent feeding (2-shaft driven by pulse motor) |
6. | Needle Bar Stroke | 41.2mm |
7. | Presser foot stroke | 4 mm to 10 mm |
8. | Needles | DP×5、DP×17 |
9. | Work Holder Lift | 38mm |
10. | Presser Foot Lift | 15mm |
11. | Hook | 3 times large rotary hook |
12. | Memory of Pattern Data | Internal & USB |
13. | Pause function | Stop the machine during the sewing |
14. | Scaling Up/Down Function | Allows a pattern to be scaled up/down on the X axis and Y axis independently when user sews a pattern. Ratio: 1% to 400% (0.1% per
step) |
15. | Scaling Up/Down Method | Increasing / decreasing stitch length & Increasing / decreasing stitch number |
16. | Sewing Speed Limitation | 200～2700rpm（100rpm per step） |
17. | Pattern Selection Function | Pattern No. selection method |
18. | Up counter | No Count/Count of Pattern /Count of Cycle (0～99999) |
19. | Down Counter | No Count/Count of Pattern /Count of Cycle (0～99999) |
20. | Sewing Machine Motor | Servo Motor |
21. | Stop Needle at Highest Position Function | After the completion of sewing, the needle can return to its highest position |
22. | Rated Power | 750W |
23. | Operation Temperature Range | 0℃～45℃ |
24. | Operation Humidity Range | 35%～85% （No Dew Condensation） |
25. | Line Voltage | AC 220V ± 10%；50/60Hz |
26. | Plywood box size | 180x90x130cm |
27. | Packing volume | 2.106cbm |
28. | Gross weight | 430kg |
29. | Application | FIBC, ton bag, jumbo bag, etc. |
30. | Certification | CE, RoHS |
31. | Language | Chinese, English, Burmese, Korean, Turkish, Japanese, Vietnamese, Italiano, Portuguese, Espanol. |
32. | OEM | Yes |
33. | Working lasting | 24 hours long lasting |
34. | HS code | 8452219000 |
