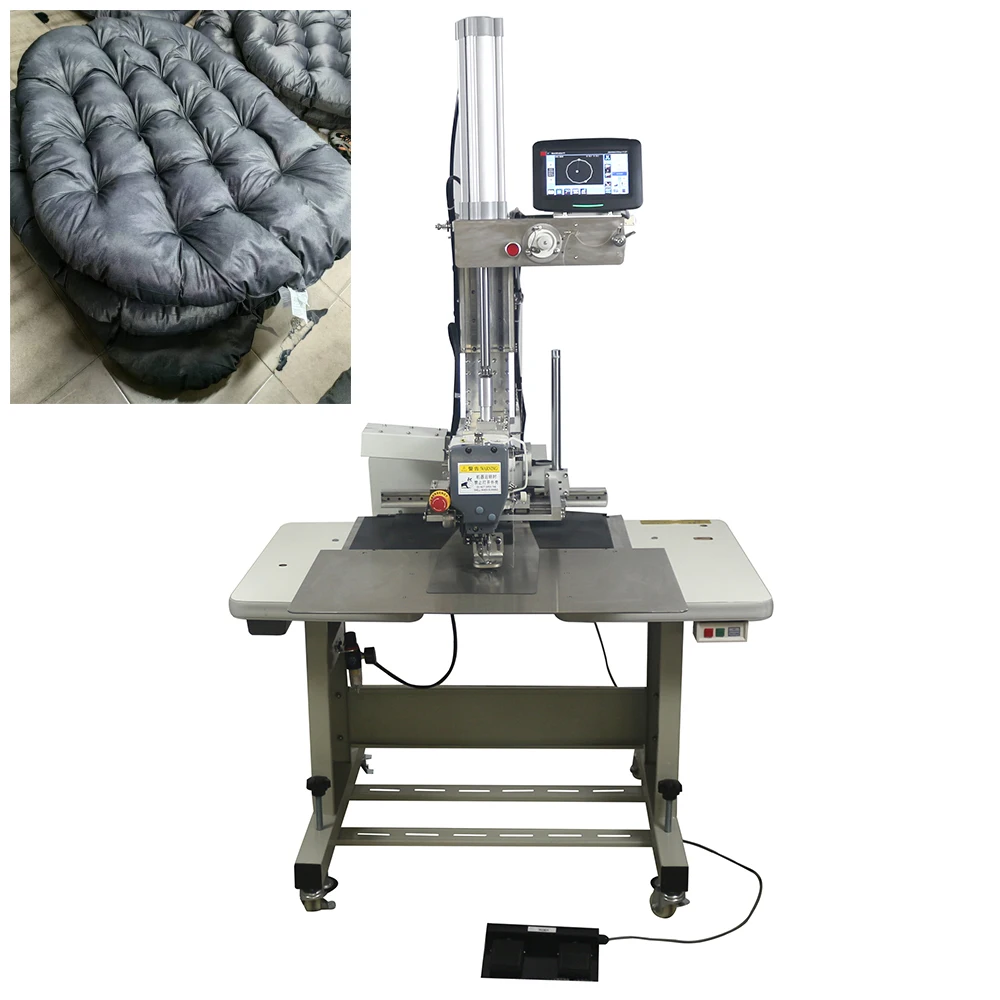

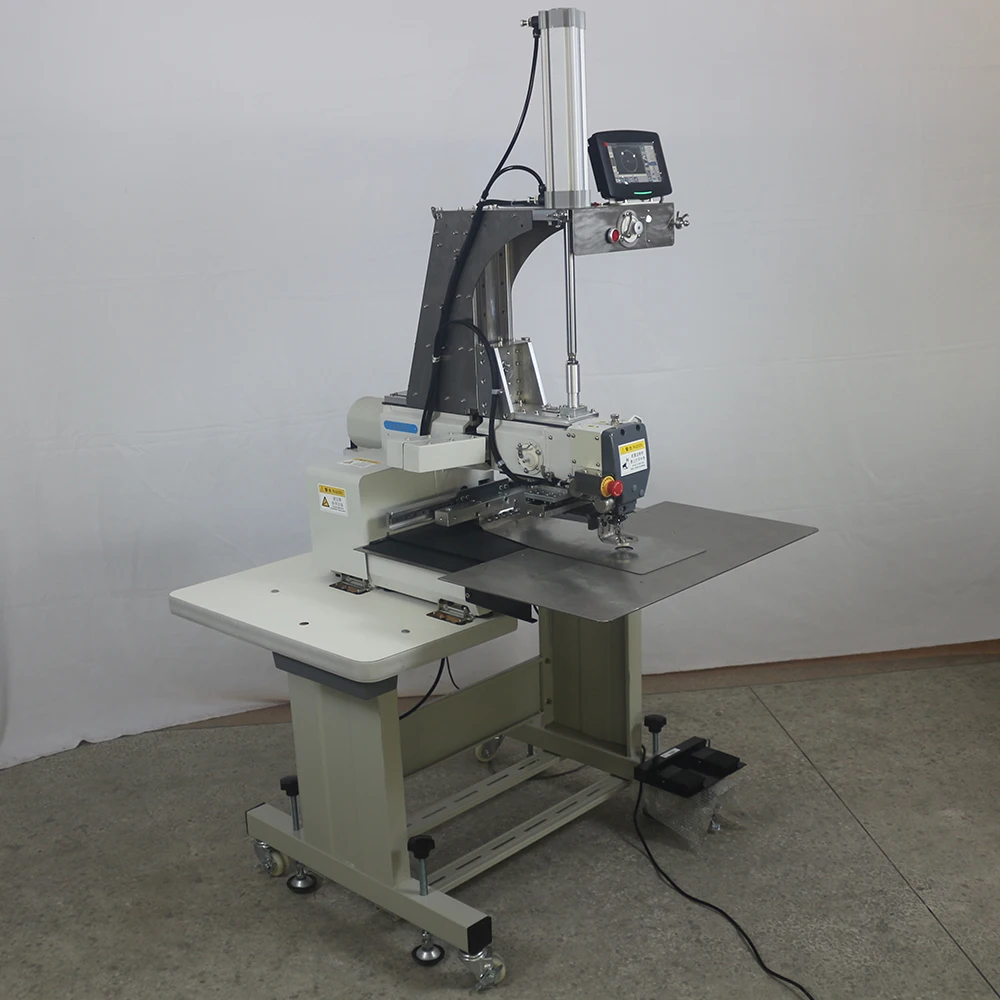

Automatic Cushion Pattern Sewing Machine for Pillow Cases Industrial Pillow Cushion Tacking Sewing Machine

Categories:

Textile special equipment sales

Product Description

Specification

1.	Commodity	Pillow cushion sewing machine
2.	Model No.	BY-3520P
3.	System	Dahao / Raynen / Systemtop

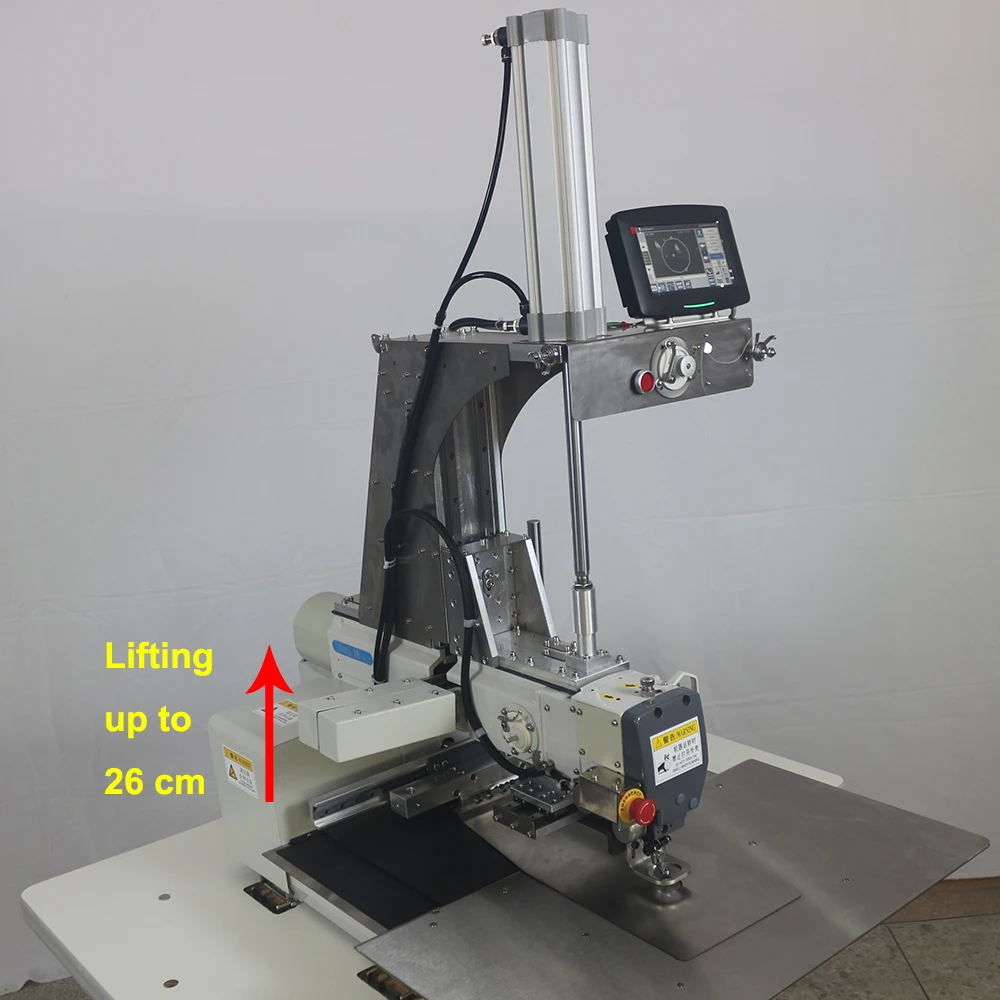

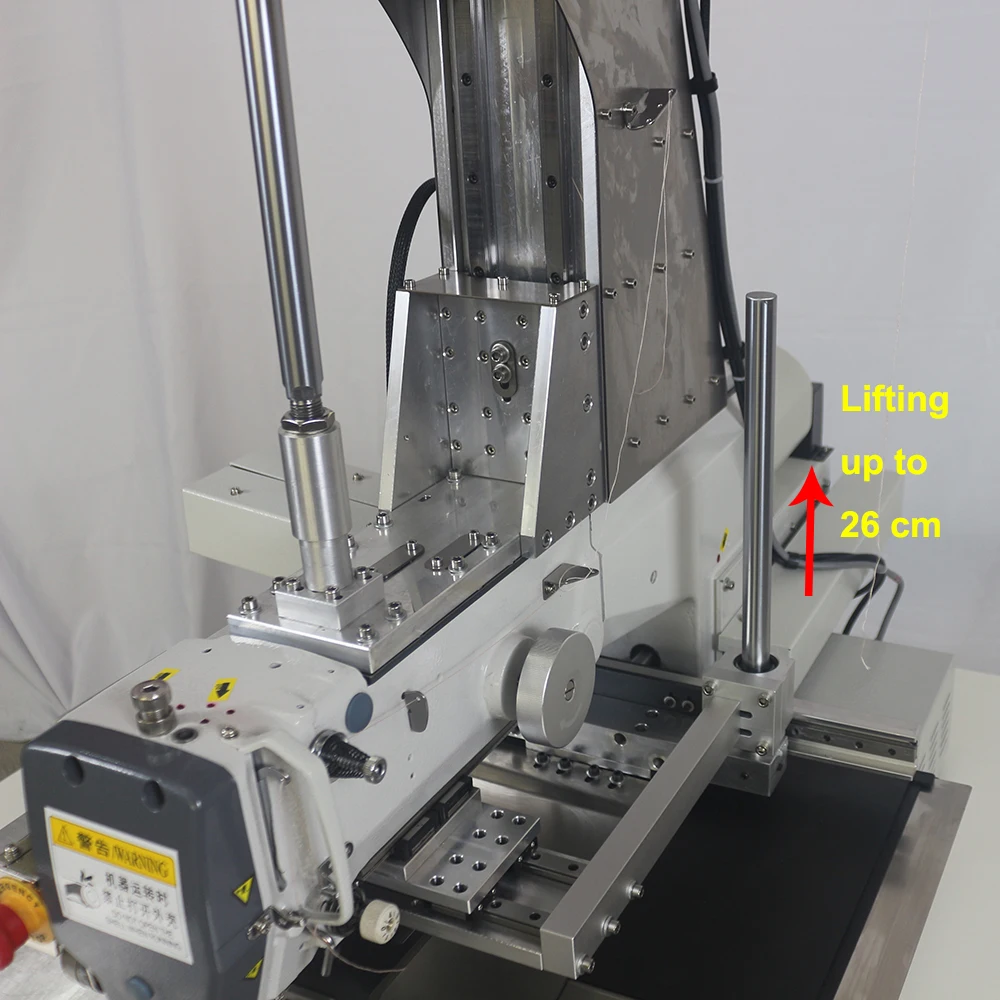

4.	Head lifting height	15cm-26cm
5.	Working area	42-68cm
6.	Maximum sewing speed	2800rpm
7.	Materials feeding method	Intermittent cloth delivery(Stepping motor, 2-axis drive)
8.	Speed setting	200-2800rpm
9.	Stitch length	1.0-12.7mm
10.	Stitch amount	20,000 needles/1 pattern
11.	Presser foot/Clamp form	Pneumatic
12.	Storage of pattern	128M RAM (999 patterns can be stored) + U disk extension

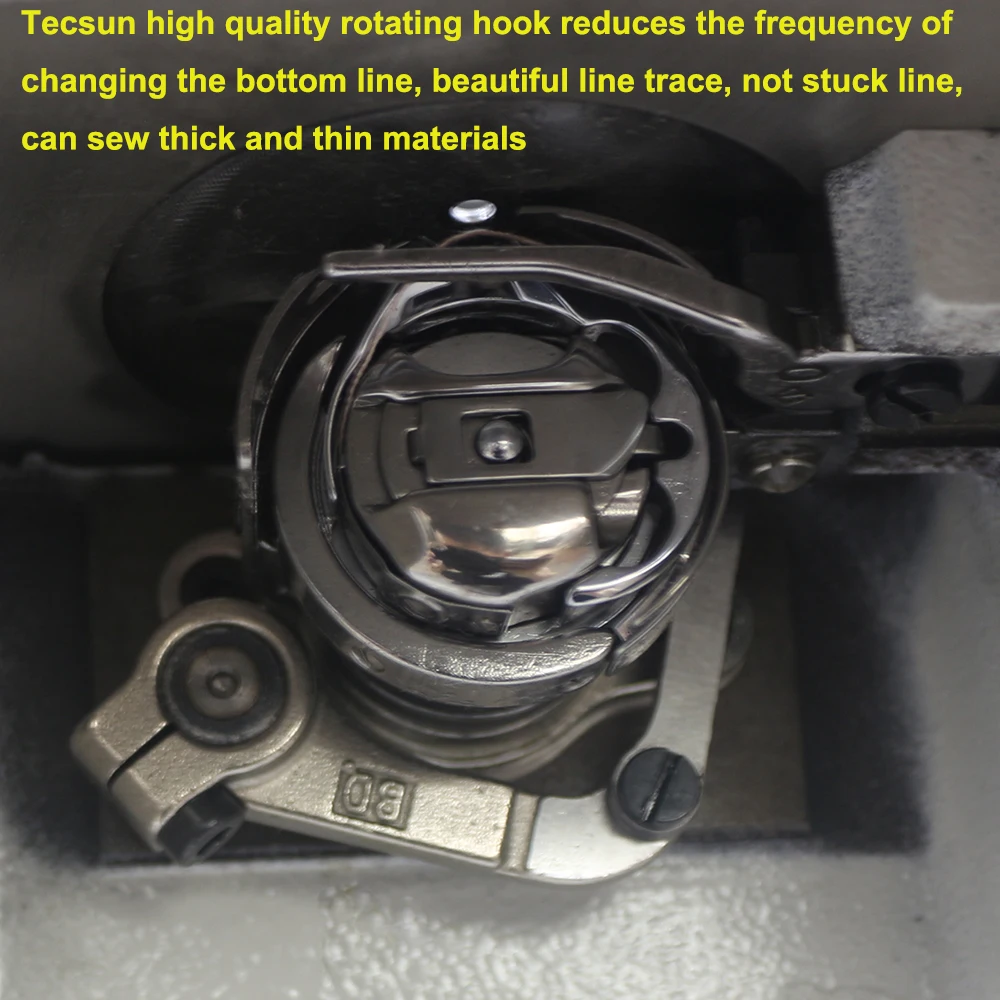

13.	Hook	Double rotating hook
14.	Needle	DP×17 #18 19 20 21 22 23 24 25

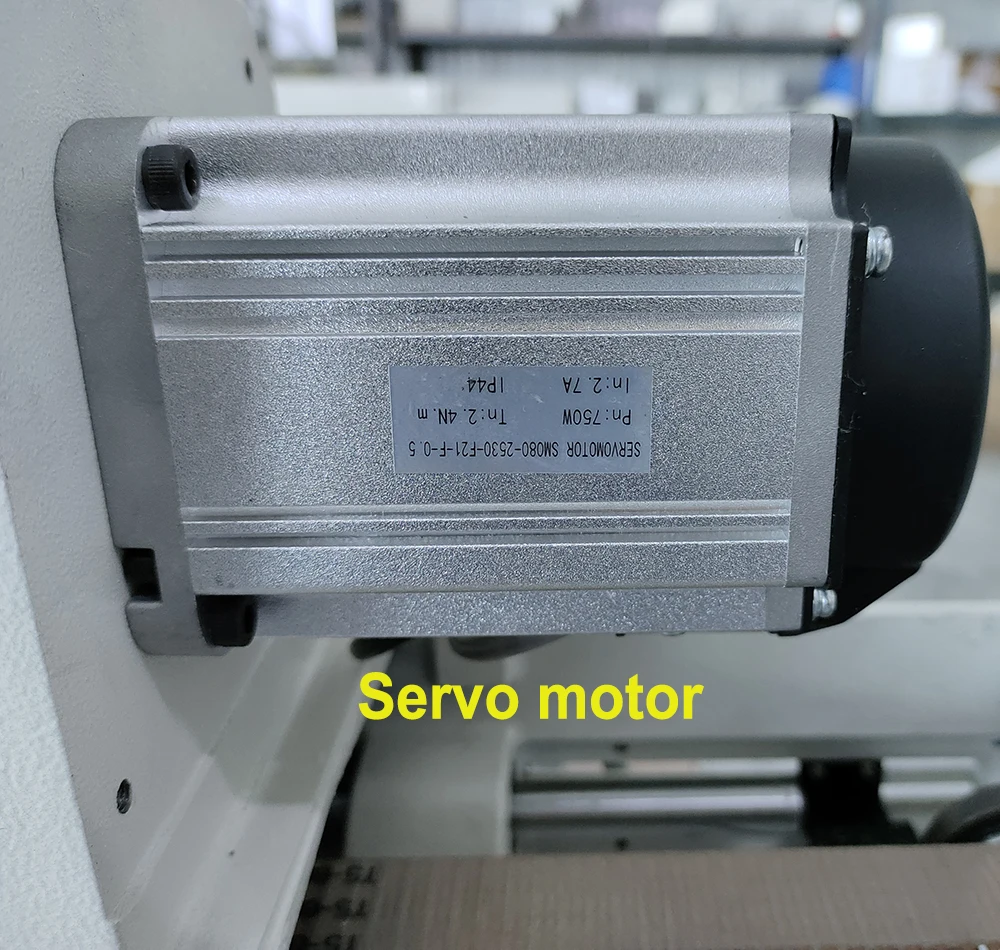

15.	Spindle motor	Direct drive servo motor 750W
16.	Operation Temperature Range	0℃～45℃
17.	Operation Humidity Range	35%～85% （No Dew Condensation）
18.	Line Voltage	AC 220V ± 10%；50/60Hz
19.	Plywood box size	125x124x211cm
20.	Volume	3.2705cbm
21.	Gross weight	280KG
22.	Application	Cushion, pillow, etc.
23.	Certification	CE, RoHS
24.	Language	Chinese, English, Burmese, Korean, Turkish, Japanese, Vietnamese, Italiano, Portuguese, Espanol.
25.	OEM	Yes
26.	Working lasting	24 hours long lasting
27.	HS code	8452219000
