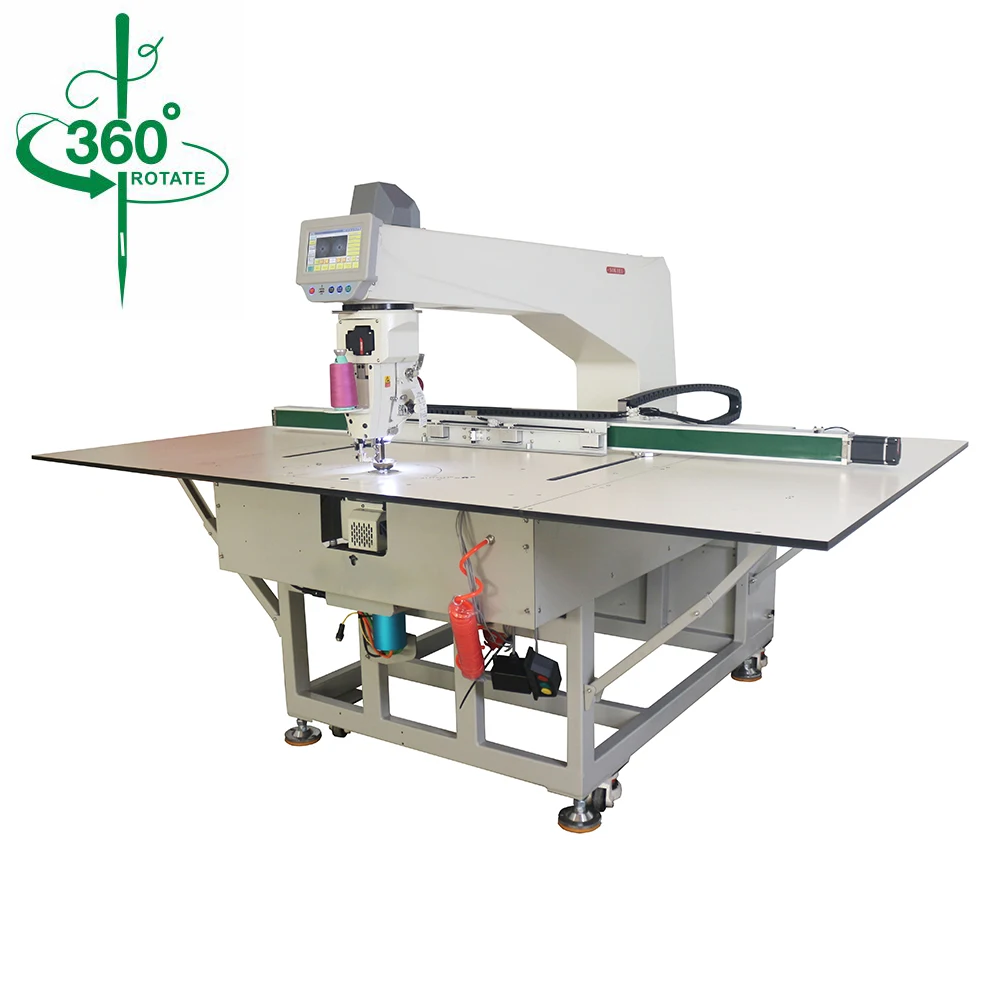

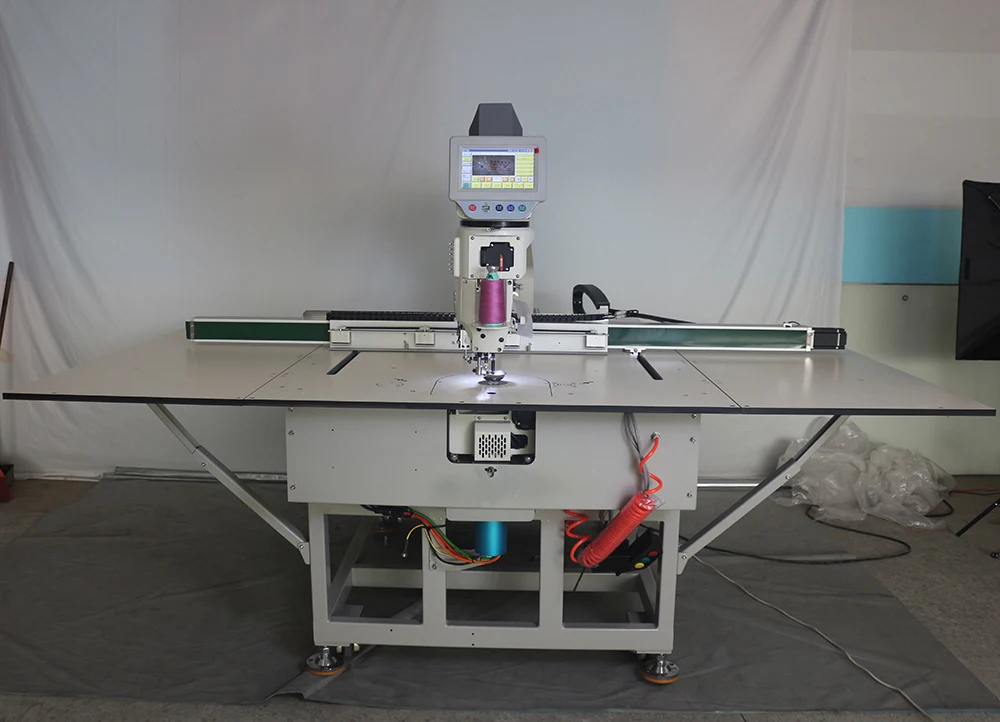

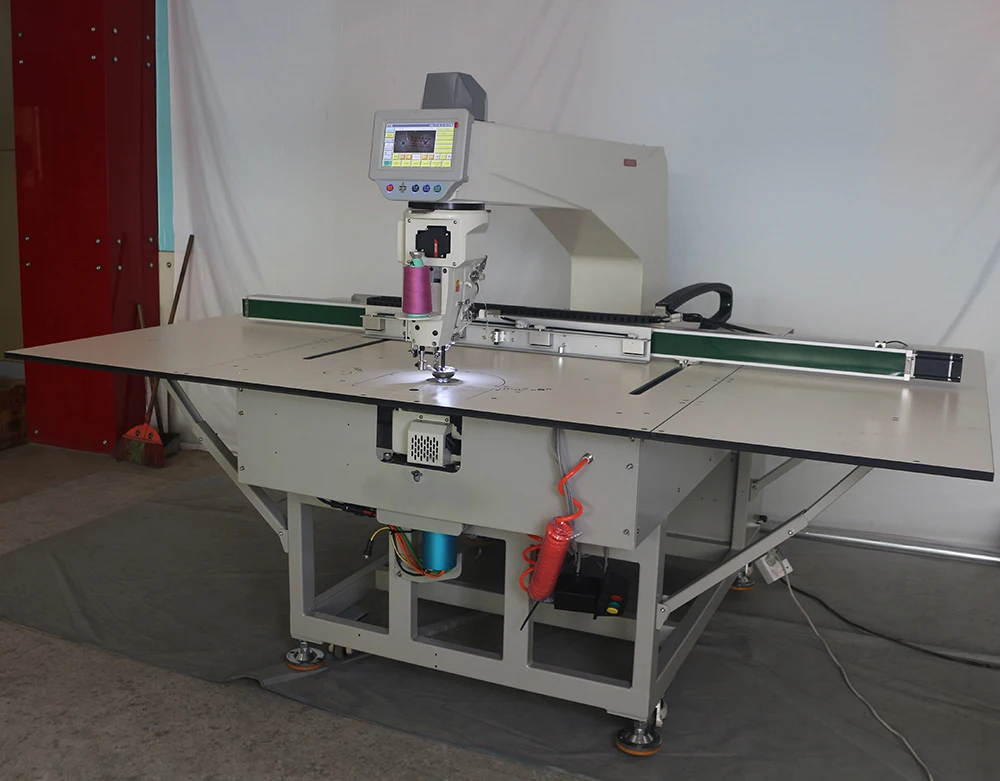

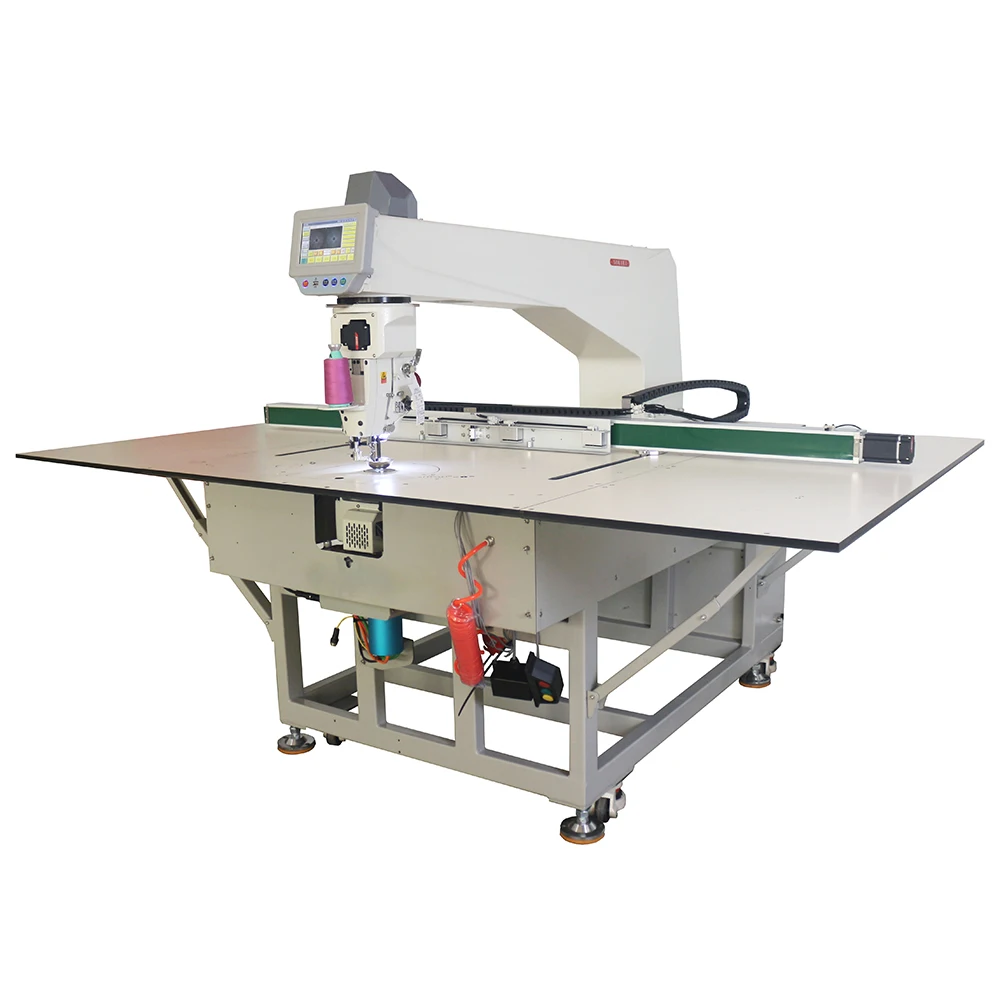

Turning Head Template Sewing Machine for Fabric Mattress Leather and Artificial Leather

2.

Sewing Area

X(Lateral) Direction Y(Longitudinal) Direction
1300(mm) x 900(mm)

3.

Stitch type

301 lockstitch form

4.

Max. Sewing Speed

3200 RPM (when stitch length at 3mm and with regular thread)

5.

Stitch Length

0.1～12.7mm

6.

Lift of the presser foot

By hand: 5.5 mm, by knee: 13 mm

7.

Needle type

DPX17(#16-#23), DBX1 10#(7#-14#), DPX5 10#(7#~14#), DPX35 19#(18#~23#)

8.

Hook

Double capacity hook

9.

Middle presser foot

Stroke of 4mm as standard

10.

Lowest position adjustable range

0.5-8mm

11.

Minimum distance adjustment range

25mm

12.

Outside presser foot

Distance to the big needle plate: 25mm

13.

Memory of Pattern Data

Memory/U Disk

14.

File format

DXF, AI, PLT, DST

15.

Maximum stitches in a pattern

80000 stitches

16.

Storage of patterns

999

17.

Storage of templates

999

18.

Main motor power

750W

19.

Total power

2100W

20.

Operation Temperature Range

0℃～45℃

21.

Operation Humidity Range

35%～85% （No Dew Condensation）

22.

Line Voltage

AC 220V ± 10%, 50/60Hz, single phase

23.

Plywood box size

223x115x161cm

24.

Packing volume

4CBM

25.

Gross weight

750kg

26.

Application

Garment, clothes, leather, bag, etc.

27.

Certification

CE, RoHS

28.

Language

Chinese, English, Burmese, Korean, Turkish, Japanese, Vietnamese, Italiano, Portuguese, Espanol.

29.

OEM

Yes

30.

Working lasting

24 hours long lasting

31.

HS code

8452219000
