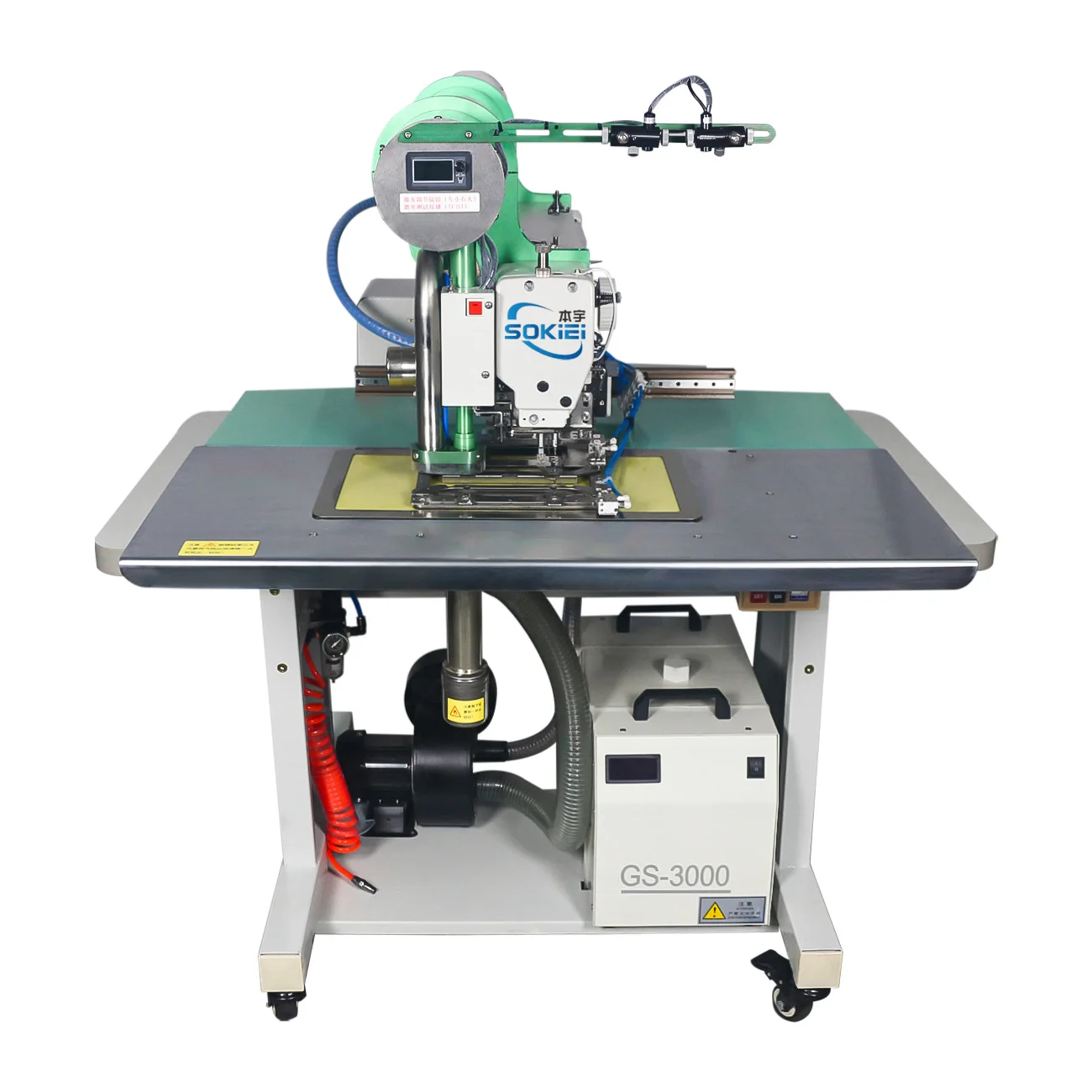

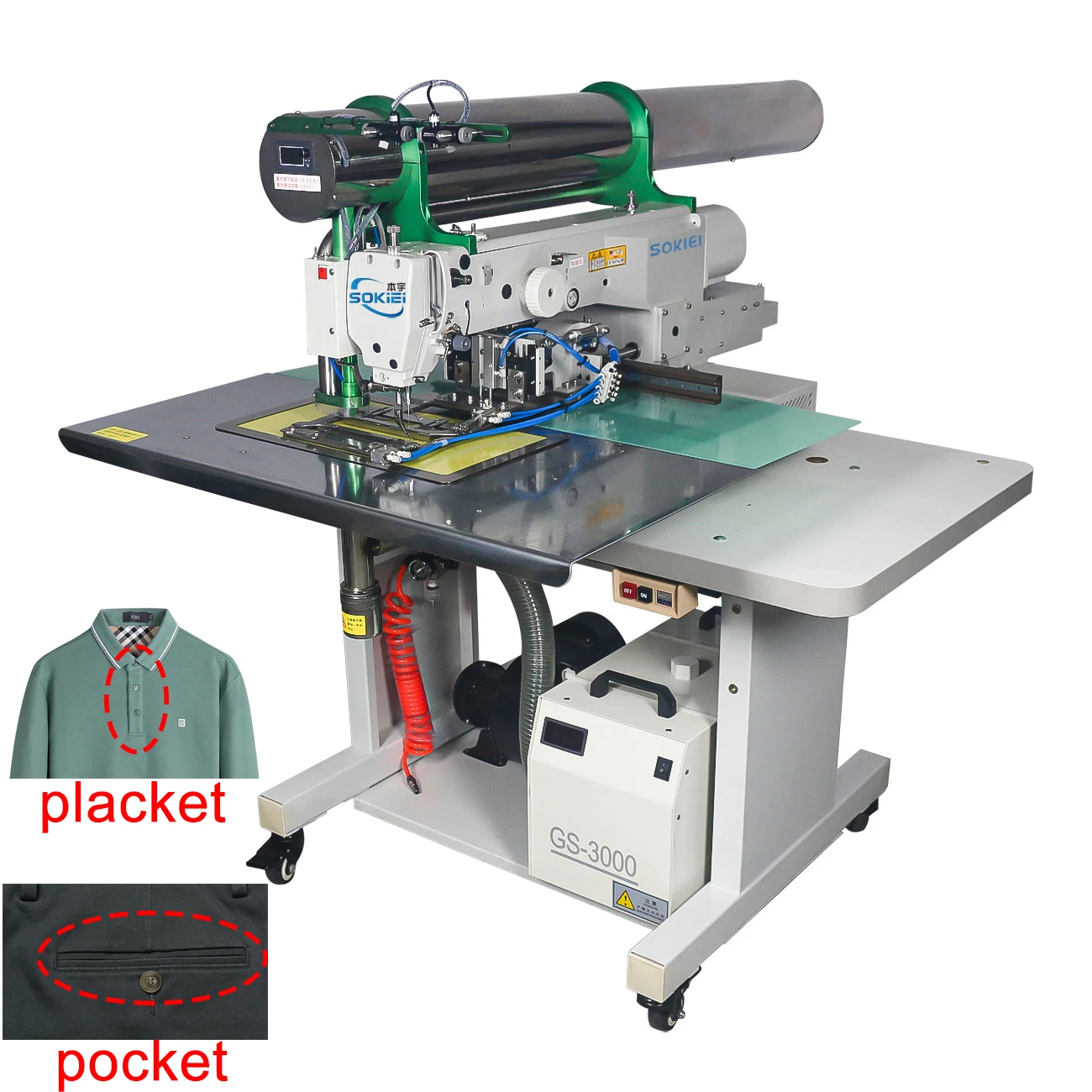

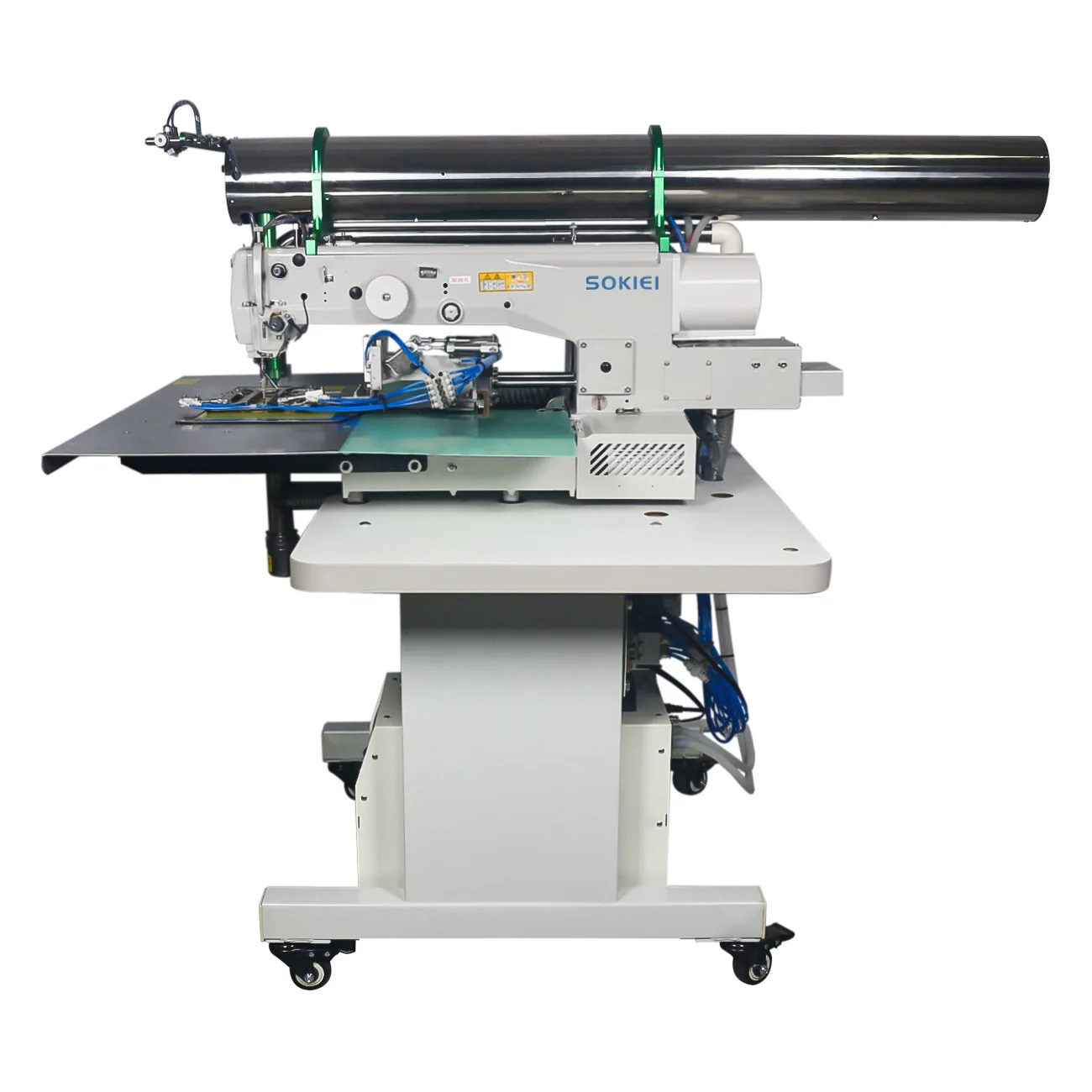

1. | Commodity | Pocket placket sewing machine |
2. | Sewing Area | X(Lateral) Direction Y(Longitudinal) Direction
350(mm) x 200(mm) |
3. | Max. Sewing Speed | 3000rpm（with stitch interval below 3mm） |
4. | Stitch Length | 0.1～12.7mm, and in the control system is of version 5.0 or above, the maximum stitch length can extend to 40 mm（Min Resolution:
0.10mm） |

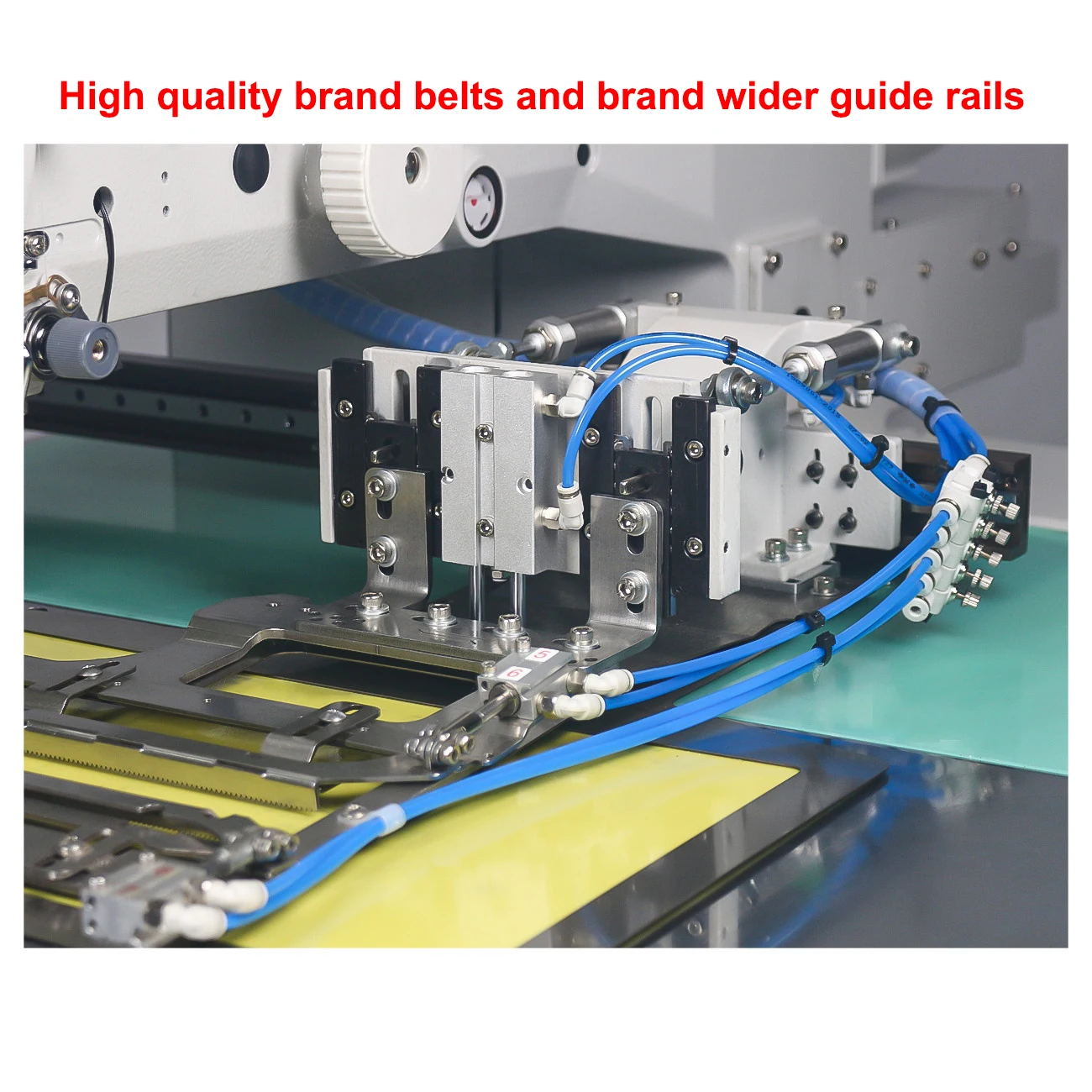

5. | Feed Motion of Frame | Intermittent feeding (2-shaft driven by pulse motor) |
6. | Needle Bar Stroke | 41.2mm |
7. | Needles | DP×5、DP×17 |
8. | Lift of Frame | Standard 18mm to Max. 22mm（Pneumatic type: Max. 25mm） |
9. | Intermediate Presser | Stepping Driving (Range: 0～8mm) |
10. | Lift of Intermediate Presser | 20mm |

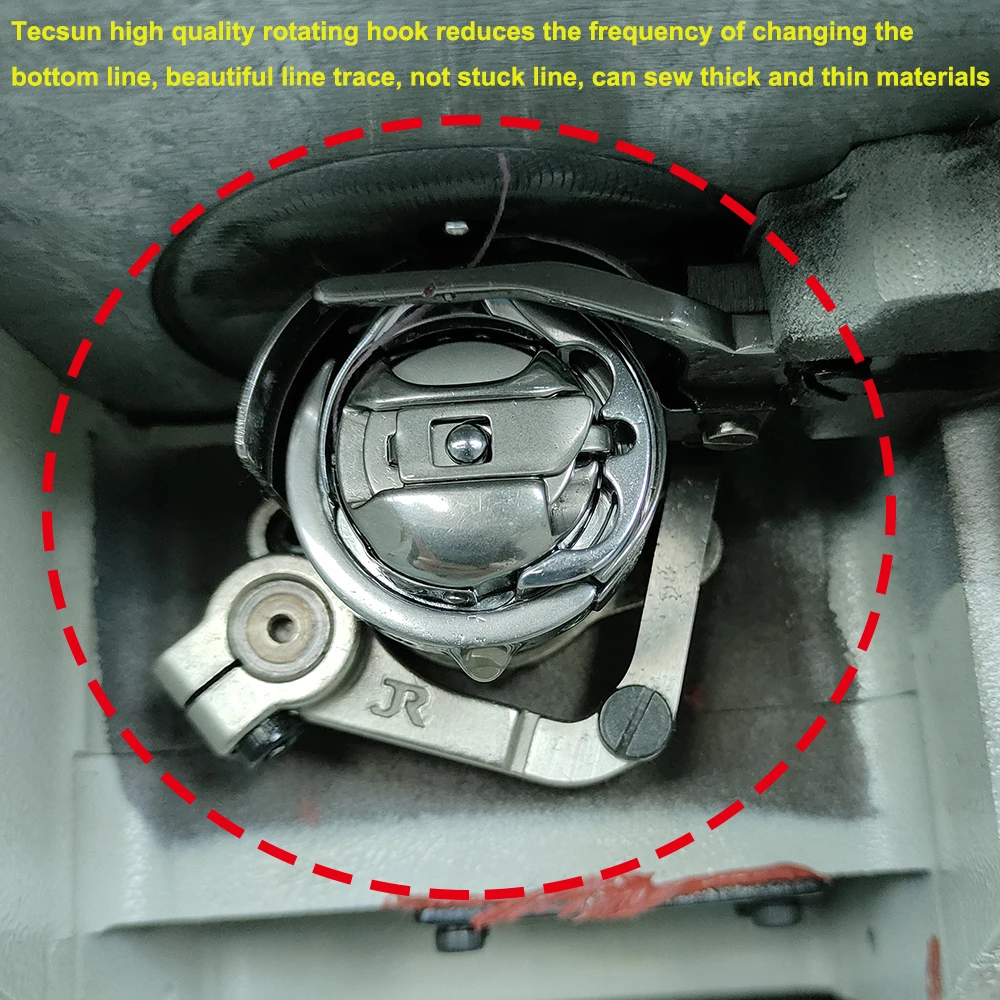

11. | Hook | Tecsun high quality rotating hook |
12. | Memory of Pattern Data | Memory/U Disk |
13. | Pause function | Stop the machine during the sewing |
14. | Scaling Up/Down Function | Allows a pattern to be scaled up/down on the X axis and Y axis independently when user sews a pattern. Ratio: 1% to 400% (0.1% per
step) |
15. | Scaling Up/Down Method | Increasing / decreasing stitch length & Increasing / decreasing stitch number |
16. | Sewing Speed Limitation | 200～3000rpm（100rpm per step） |
17. | Pattern Selection Function | Pattern No. selection method |
18. | Up counter | No Count/Count of Pattern /Count of Cycle (0～99999) |
19. | Down Counter | No Count/Count of Pattern /Count of Cycle (0～99999) |
20. | Sewing Machine Motor | Servo Motor |
21. | Stop Needle at Highest Position Function | After the completion of sewing, the needle can return to its highest position |
22. | Rated Power | 750W |

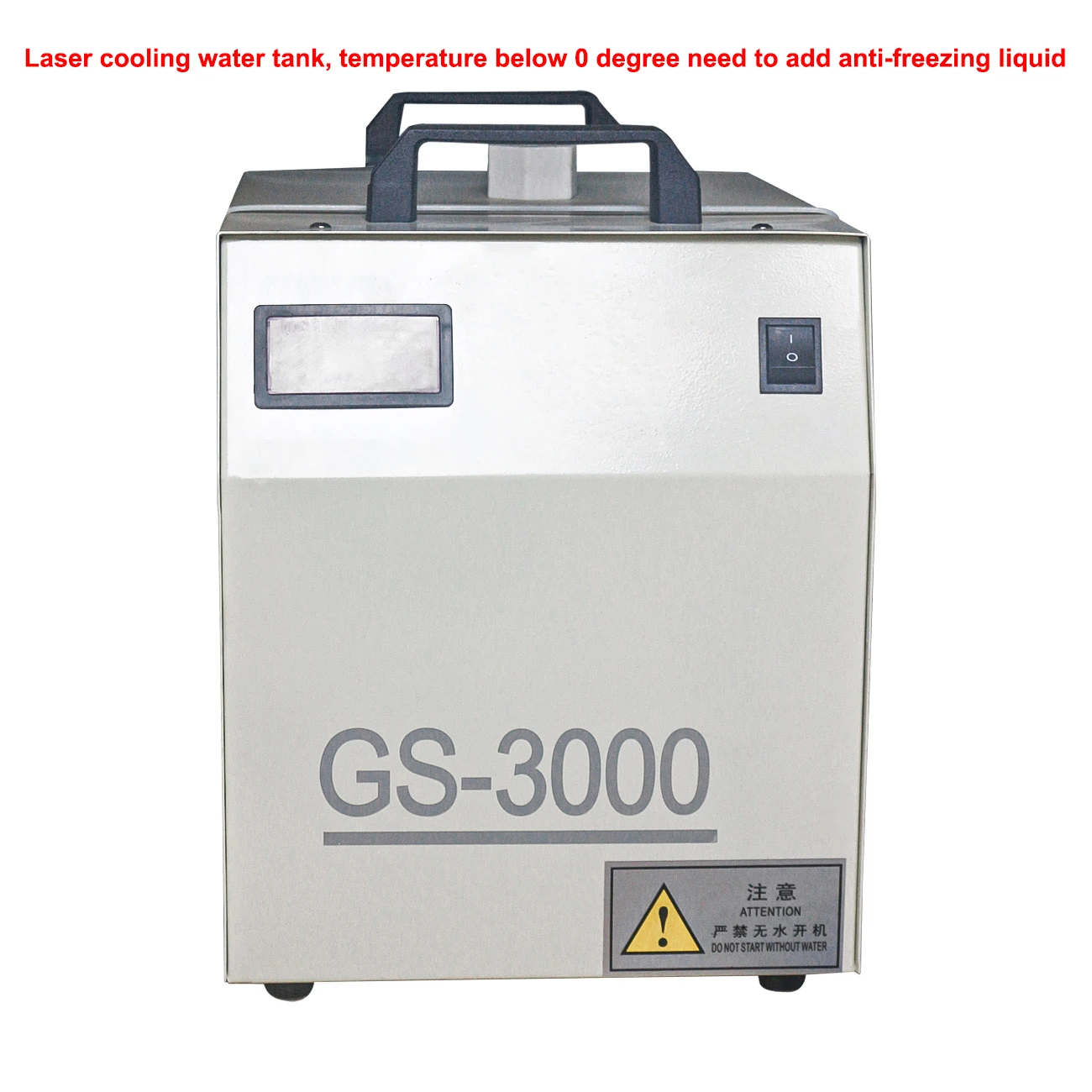

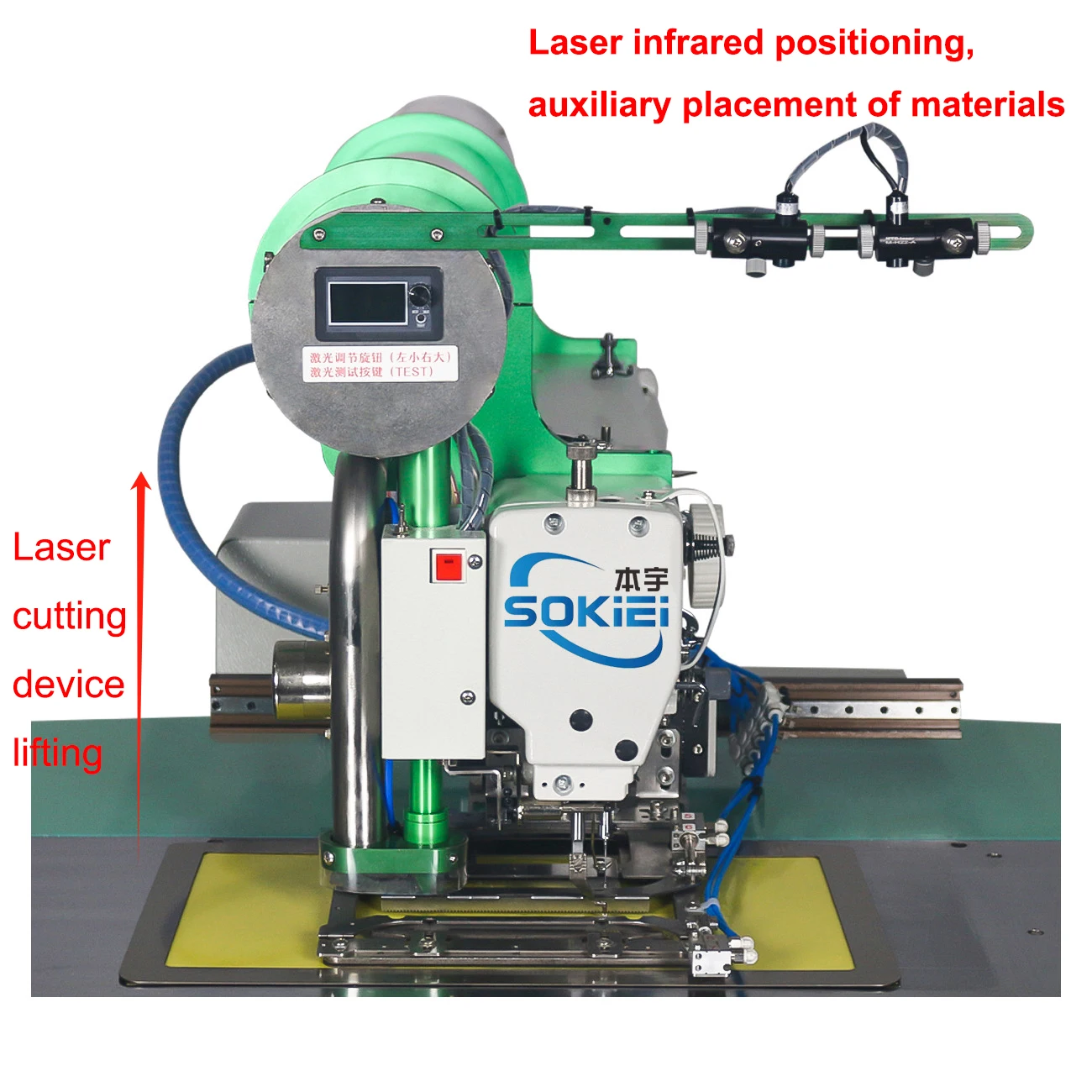

23. | Power of Laser | 100W-120W |
24. | Operation Temperature Range | 0℃～45℃ |
25. | Operation Humidity Range | 35%～85% （No Dew Condensation） |
26. | Line Voltage | AC 220V ± 10%；50/60Hz |
27. | Plywood box size | 167*122*152cm |
28. | Packing volume | 3.1cbm |
29. | Gross weight | 320kg |
30. | Application | Trousers, pants, jeans, shirts, uniforms, clothes, etc. |
31. | Certification | CE, RoHS |
32. | Language | Chinese, English, Burmese, Korean, Turkish, Japanese, Vietnamese, Italiano, Portuguese, Espanol. |
33. | OEM | Yes |
34. | Working lasting | 24 hours long lasting |
35. | HS code | 8452219000 |
